Structure

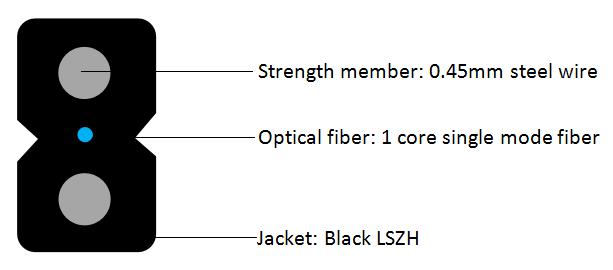

The optical fiber unit is positioned in the centre.Two steel are placed at the two sides.A steel wires as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.The cable is widely use in FTTH project.
Characteristics
1. Specail low-bend-sensitivity fiber provides high bandwith and excellent communication transmission property;
2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;3.Single steel wire or
3. massagers as the additional strength member ensures good performance of tensile strength;
4. Simple structure,light weight and high practicability;
5. Novel flute design,easily strip and splice,simplify the installation and maintenance;
6. Low smoke,zero halogen and flame retardant sheath.
Applications
1. Used in access network or as access cable from outdoor to indoor in customer premises network;
2. Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.
Sructure and technical parameters
|
Cale Model |
Cable Size(mm) |
Cable Weight(kg/km) |
Tensile Strength Long/Short Term(N) |
Crush Resistance Long/Short Term(N//100m) |
Bending Radius Static/Dynamic(mm) |
Storage/Operating Temperature(°C) |
|
GJXH-1B |
(2.0±0.1)x(3.0±0.1) |
10 |
60/120 |
1000/2000 |
20/40 |
-40~+60 |
|
GJXFH-1B |
(2.0±0.1)x(3.0±0.1) |
8.5 |
40/80 |
500/1000 |
20/40 |
-40~+60 |
Note: Then bending radius is only applicable to the ordinary Bow-Type drop cable without suspension wire part.
