Product Description

OPGW is primarily used by the electric utility industry, placed in the secure topmost position of the transmission line where it “shields” the all-important conductors from lightning while providing a telecommunications path for internal as well as third party communications. Optical Ground Wire is a dual functioning cable, meaning it serves two purposes. It is designed to replace traditional static / shield / earth wires on overhead transmission lines with the added benefit of containing optical fibers which can be used for telecommunications purposes. OPGW must be capable of withstanding the mechanical stresses applied to overhead cables by environmental factors such as wind and ice. OPGW must also be capable of handling electrical faults on the transmission line by providing a path to ground without damaging the sensitive optical fibers inside the cable.

Characteristics

Preferred option for easy handling and splicing

Thick-walled aluminum pipe provides excellent crush resistance

Hermetically sealed pipe protects optical fibers

Outer wire strands selected to optimize mechanical and electrical properties

Applications

For use by electric utilities on transmission lines in lieu of traditional shield wire

For retrofit applications where existing shield wire needs to be replaced with OPGW

For new transmission lines in lieu of traditional shield wire

Voice, video, data transmission

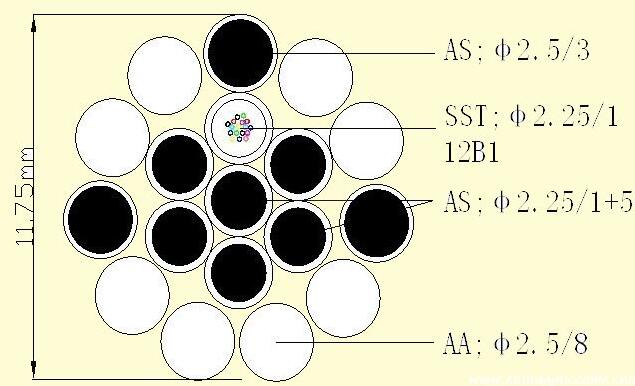

structure and technical parameters
