Description

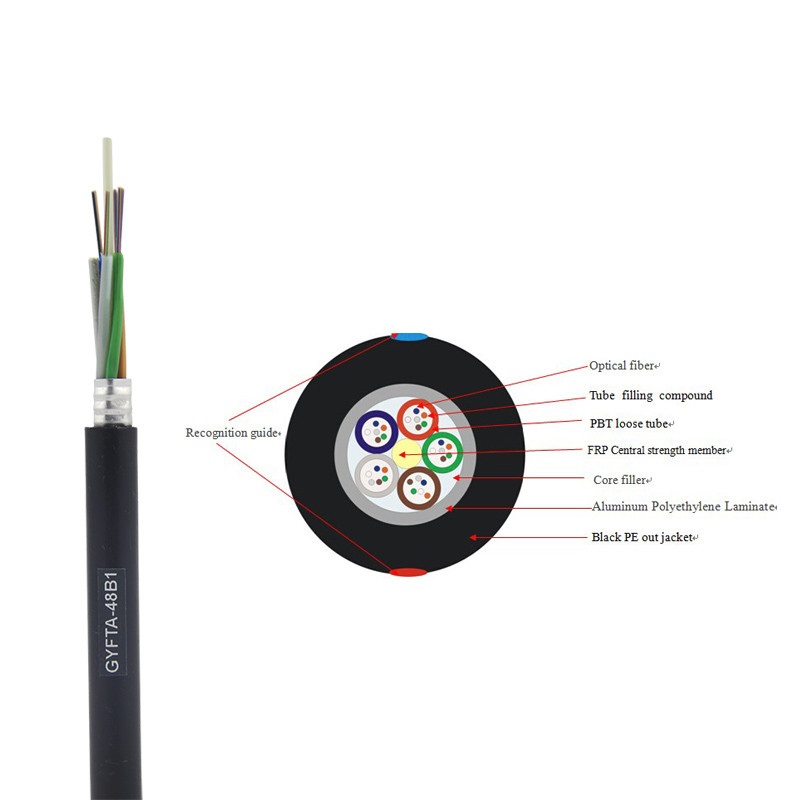

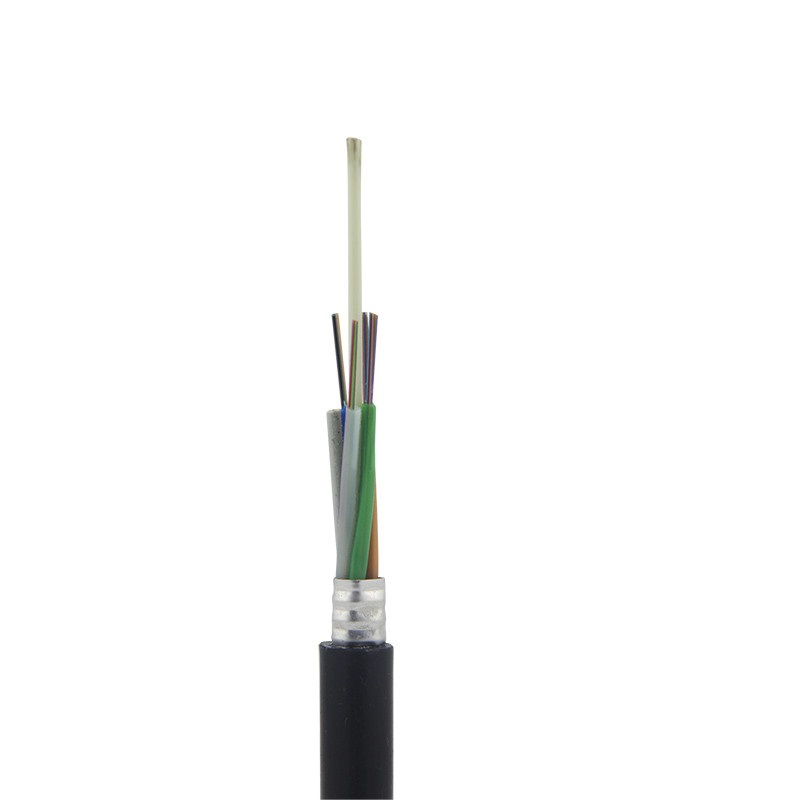

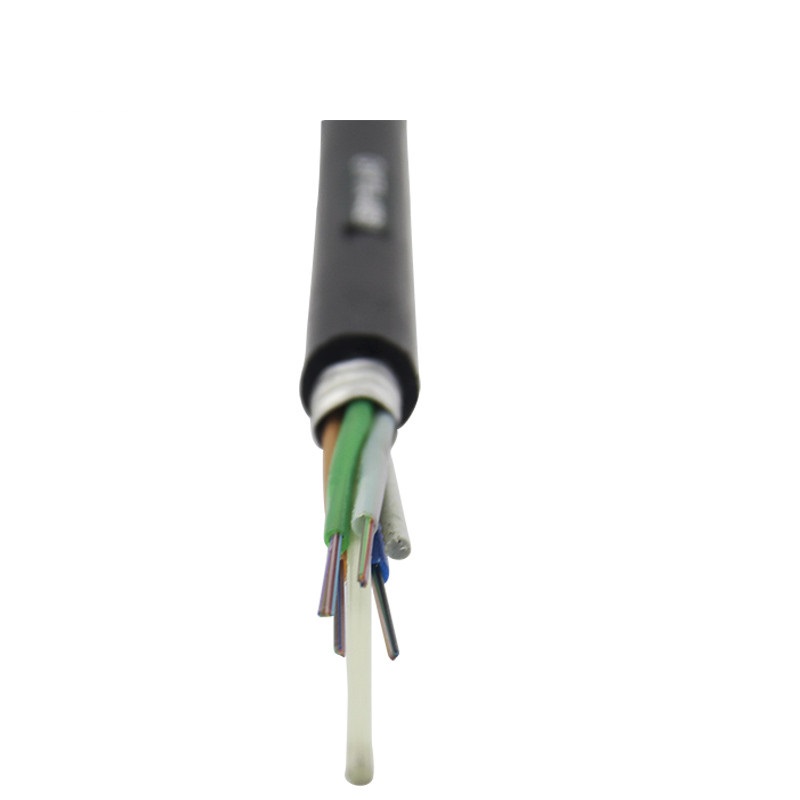

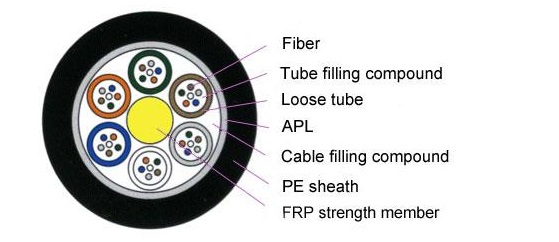

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, the cable is completed with a PE sheath.
Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Specially designed compact structure is good at preventing loose tubes from shrinking
· PE sheath protects cable from ultraviolet radiation
· The following measures are taken to ensure the cable watertight:
- Single Fiber Reinforced Plastic as the central strength member
- Loose tube filling compound
- 100% cable core filling
- APL moisture barrier
Standards
GYFTA cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
Optical Characteristics
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
||
|
Attenuation (+20℃) |
@850nm |
≤3.0 dB/km |
≤3.0 dB/km |
||
|
@1300nm |
≤1.0 dB/km |
≤1.0 dB/km |
|||
|
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|||
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|||
|
Bandwidth (Class A) |
@850nm |
≥500 MHz·km |
≥200 MHz·km |
||
|
@1300nm |
≥1000 MHz·km |
≥600 MHz·km |
|||
|
Numerical Aperture |
0.200±0.015NA |
0.275±0.015NA |
|||
|
Cable Cut-off Wavelengthλcc |
≤1260nm |
≤1480nm |
|||
Technical Parameters
|
Cable Type |
Fiber Count |
Tubes |
Fillers |
Cable Diameter mm |
Cable Weight kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Long/Short Term N/100mm |
Bending Radius Static /Dynamic mm |
|
GYFTA-2~6 |
2~6 |
1 |
5 |
11.4 |
108 |
400/1000 |
300/1000 |
10D/20D |
|
GYFTA-8~12 |
8~12 |
2 |
4 |
11.4 |
108 |
400/1000 |
300/1000 |
10D/20D |
|
GYFTA-14~18 |
14~18 |
3 |
3 |
11.4 |
108 |
400/1000 |
300/1000 |
10D/20D |
|
GYFTA-20~24 |
20~24 |
4 |
2 |
11.4 |
108 |
400/1000 |
300/1000 |
10D/20D |
|
GYFTA-26~30 |
26~30 |
5 |
1 |
11.4 |
108 |
400/1000 |
300/1000 |
10D/20D |
|
GYFTA-32~36 |
32~36 |
6 |
0 |
11.4 |
108 |
400/1000 |
300/1000 |
10D/20D |
