Description

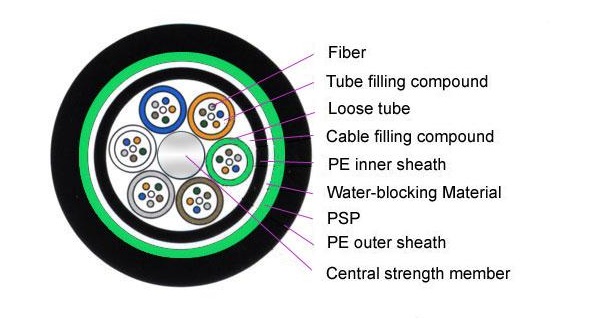

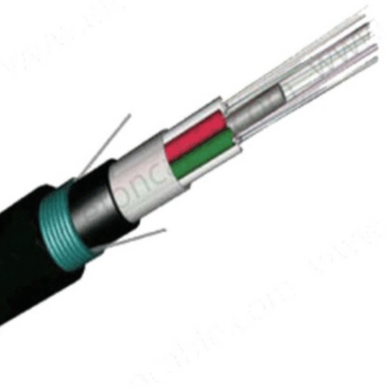

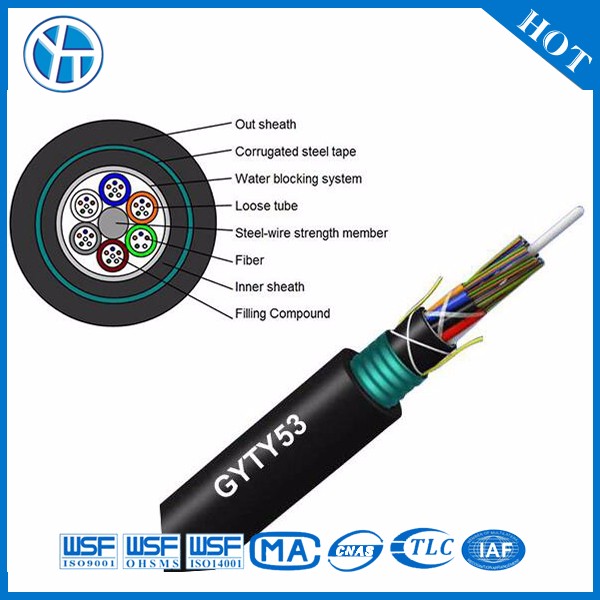

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
Characteristics
· Good mechanical and temperature performance
· High strength looes tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· The following measures are taken to ensure the cable watertight:
- Steel wire used as the central strength member
- Loose tube filling compound
- 100% cable core filling
- PSP enhancing moisture-proof
- Water-blocking material
·Standards
GYTY53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
Optical Characteristics
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
|
Attenuation (+20℃) |
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
|
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
|
|
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
|
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
|
@1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
|
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
|
Cable Cut-off Wavelengthλcc |
≤1260nm |
≤1480nm |
|
|
|
Technical Parameters
|
Cable Type |
Fiber Count |
Tubes |
Fillers |
Cable Diameter mm |
Cable Weight kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Long/Short Term N/100mm |
Bending Radius
Static
/Dynamic
mm |
|
GYTY53-2~6 |
2~6 |
1 |
5 |
13.8 |
188 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTY53-8~12 |
8~12 |
2 |
4 |
13.8 |
188 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTY53-14~18 |
14~18 |
3 |
3 |
13.8 |
188 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTY53-20~24 |
20~24 |
4 |
2 |
13.8 |
188 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTY53-26~30 |
26~30 |
5 |
1 |
13.8 |
188 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTY53-32~36 |
32~36 |
6 |
0 |
13.8 |
188 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTY53-38~48 |
38~48 |
4 |
1 |
14.6 |
206 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTY53-50~60 |
50~60 |
5 |
0 |
14.6 |
206 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTY53-62~72 |
62~72 |
6 |
0 |
15.0 |
215 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTY53-74~84 |
74~84 |
7 |
1 |
16.4 |
254 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTY53-86~96 |
86~96 |
8 |
0 |
16.4 |
254 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTY53-98~108 |
98~108 |
9 |
1 |
17.8 |
290 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTY53-110~120 |
110~120 |
10 |
0 |
17.8 |
290 |
1000/3000 |
|
