·Description

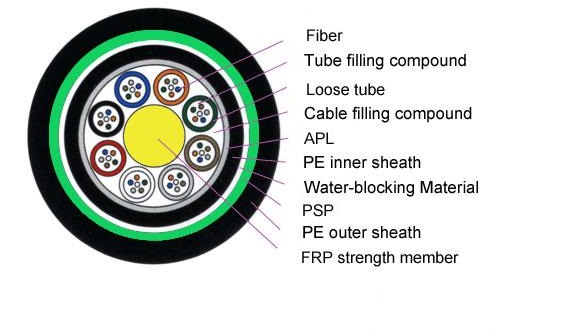

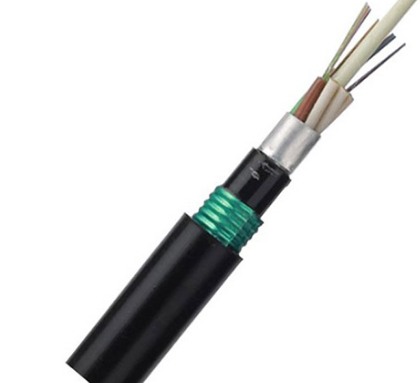

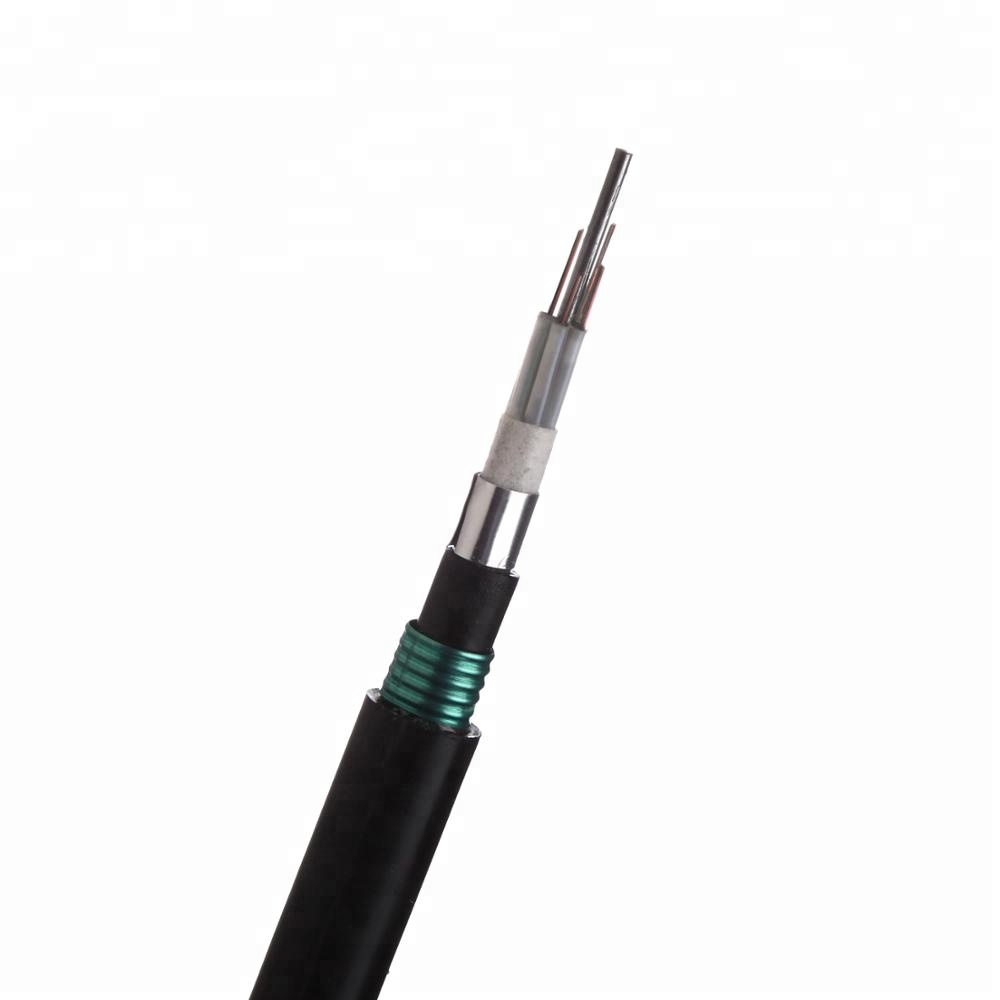

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.
·Characteristics
· Good mechanical and temperature performance
· High strength looes tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· The following measures are taken to ensure the cable watertight:
- Single Fiber Reinforced Plastic as the central strength member
- Loose tube filling compound
- 100% cable core filling
- APL moisture barrier
- PSP enhancing moisture-proof
- Water-blocking material
·Standards
GYFTA53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
·Optical Characteristics
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
|
Attenuation |
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
|
(+20℃) |
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
|
|
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
|
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
|
|
@1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
|
Cable Cut-off Wavelengthλcc |
≤1260nm |
≤1480nm |
|
|
|
·Technical Parameters
|
Cable Type |
Fiber Count |
Tubes |
Fillers |
Cable Diameter(mm) |
Cable Weight kg/km |
Tensile StrengthLong/Short Term N |
Crush Resistance Long/Short Term N/100mm |
Bending Radius Static/Dynamic (mm) |
|
GYFTA53-2~6 |
2~6 |
1 |
7 |
16.8 |
255 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYFTA53-8~12 |
8~12 |
2 |
6 |
16.8 |
255 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYFTA53-14~18 |
14~18 |
3 |
5 |
16.8 |
255 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYFTA53-20~24 |
20~24 |
4 |
4 |
16.8 |
255 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYFTA53-26~30 |
26~30 |
5 |
3 |
16.8 |
255 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYFTA53-32~36 |
32~36 |
6 |
2 |
16.8 |
255 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYFTA53-38~42 |
38~42 |
7 |
1 |
16.8 |
255 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYFTA53-44~48 |
44~48 |
8 |
0 |
16.8 |
255 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYFTA53-50~60 |
50~60 |
5 |
3 |
19.2 |
320 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYFTA53-62~72 |
62~72 |
6 |
2 |
19.2 |
320 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYFTA53-74~84 |
74~84 |
7 |
1 |
19.2 |
320 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYFTA53-86~96 |
86~96 |
8 |
0 |
19.2 |
320 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYFTA53-98~108 |
98~108 |
9 |
|
